ED RING+

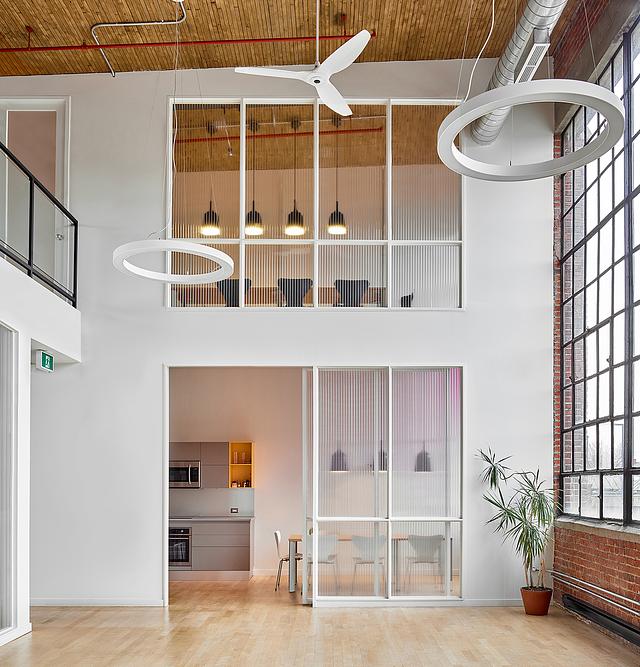

Azure-Office-06-6x6 SIZE.jpg
1200 x 1200 - Assent.jpgED RING+
Architectural Circular Luminaire
Architectural luminaire with direct or direct-indirect distribution.
Light source: LED 5.5” board.
Diffused illumination is provided by high efficiency frosted opal lens.
Sleek body of the luminaire combines two aluminum side with laser cut metal top enclosure. Suitable for suspended and wall mounted installations. Extruded aluminum body comes with white, black or grey finish. Also available with custom color options or vinyl decals. LED Strips are rated for 60,000hrs. L80 with +90 CRI. Has a proven record in office, commercial and retail installations. Custom modifications are available. ED luminaires are certified to CSA and UL Standards.
Light source: LED 5.5” board.
Diffused illumination is provided by high efficiency frosted opal lens.
Sleek body of the luminaire combines two aluminum side with laser cut metal top enclosure. Suitable for suspended and wall mounted installations. Extruded aluminum body comes with white, black or grey finish. Also available with custom color options or vinyl decals. LED Strips are rated for 60,000hrs. L80 with +90 CRI. Has a proven record in office, commercial and retail installations. Custom modifications are available. ED luminaires are certified to CSA and UL Standards.
Resources
Materials
- Aluminum
- Metal
Mounting
- Ceiling
- Surface
- Suspended
- Wall
Shape
- Circular
- Curve
- Ring
Color / Finish
- Black
- Custom
- Grey
- White
Lumens
- 2205 Lm
- 2250 Lm
- 2295 Lm
- 4410 Lm
- 4500 Lm
- 4590 Lm
- 6610 Lm
- 6750 Lm
- 6890 Lm
Watts
- 25 w
- 50 w
- 75 w
CCT
- 3000K
- 3500K
- 4000K
CRI
- 85 CRI
- 90 CRI
Circuit
- Dual Circuit
- Single Circuit
Controls Options
- Daylight Sensor
- Occupancy Sensor
Diameter
- 24 In.
- 36 In.
- 48 In.
- 60 In.
Dimensions
- H: 2.55 In. L: 23.60 In. W: 23.60 In.
- H: 2.55 In. L: 35.40 In. W: 35.40 In.
- H: 2.55 In. L: 47.20 In. W: 47.20 In.
- H: 2.55 In. L: 59.00 In. W: 59.00 In.
Dimming Protocol
- 0-10 V
- 1-10 V
- Bluetooth Wireless
- DALI
- ELV
- Triac
Dimming Range
- 1%
- 10%
- < 1%
Distribution
- Direct
- Direct/Indirect
- Indirect
Dynamic LED Color
- BIOS Dynamic
- Tunable White
Lamp Life
- 60000 hrs
Lamp Source
- LED
Listings
- CSA
- ETL
- UL
Ratings & Compliance
- Damp
- Declare
- Made in Canada
Static LED Color
- BIOS Static
Up/Down Ratio
- 0/100 (Up/Down)
- 100/0 (Up/Down)
- 30/70 (Up/Down)
- 50/50 (Up/Down)
Voltage
- 120 V
- 277 V
- 347 V
Warranty
- 5 yr
