Architectural Triad Luminaire

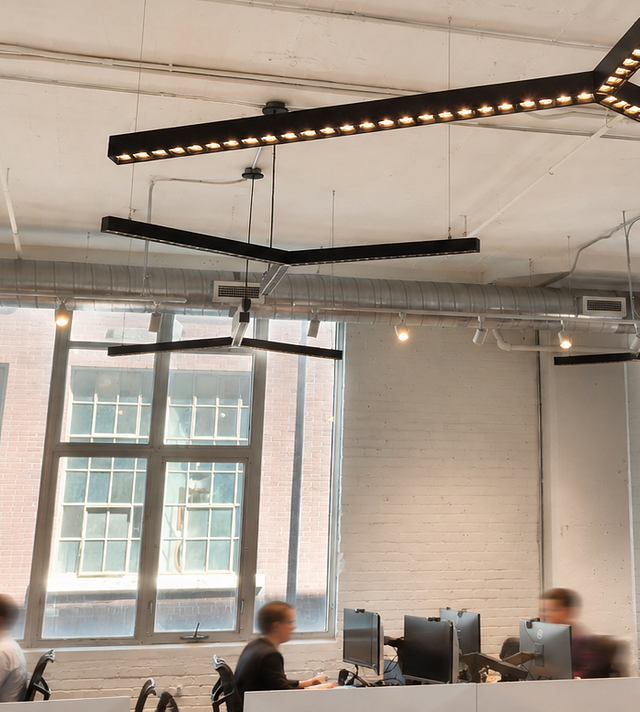

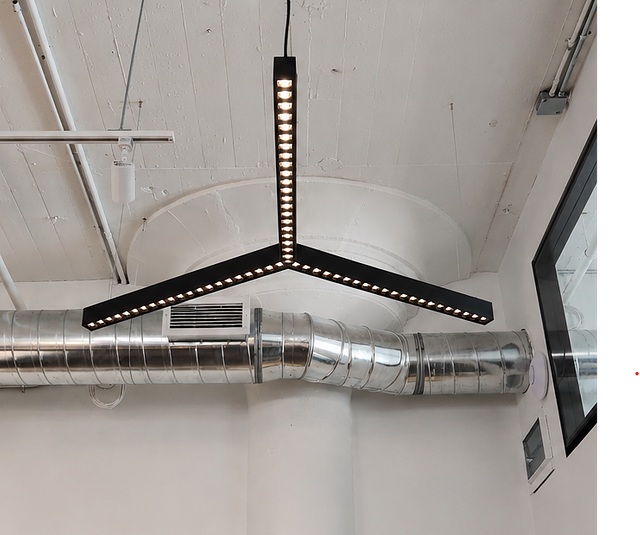

Architectural Y-shaped luminaire with direct lighting distribution. Light source: LED board 11". Dark Optic provides superior lighting distribution with precise low glare illumination. Offered with Regular 50°/10UGR or Flood 80°/15UGR internal optic. Suitable for surface, suspended and recessed installations. Extruded aluminum body comes with white, black or grey finish. LED Strips are rated for 60,000hrs. L80 with +90 CRI. Has a proven record in office, commercial and retail installations. Custom modifications are available. ED luminaires are certified to CSA and UL Standards.
Resources
Materials
- Aluminum
Shape
- Triangular
Color / Finish
- Black
- Custom
- Grey
- White
Lumens
- 3570 Lm
- 5950 Lm
- 9225 Lm
Watts
- 25 w
- 50 w
- 75 w
CCT
- 3000K
- 3500K
- 4000K
CRI
- 90 CRI
Circuit
- Dual Circuit
- Single Circuit
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
- DALI
- DMX
- ELV
- Triac
Dimming Range
- 1%
- 10%
Lamp Life
- 60000 hrs
Lamp Source
- LED
Listings
- cULus
Ratings & Compliance
- Declare
- Made in Canada
Voltage
- 120 V
- 277 V
- 347 V
Warranty
- 5 yr
