ED CURVES+
ED Curves+SS-1.jpg
ED CURVES+SS-2.jpeg
ED Curves+SS.jpgED CURVES+

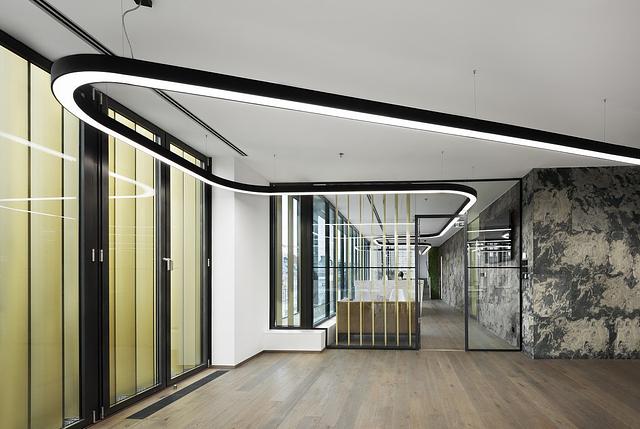

Custom Architectural Curved Shape
Architectural curved system with direct or direct-indirect distribution. Light source: LED boards. Diffused illumination is provided by high efficiency frosted opal lens or by optional prismatic optic. Sleek body of the luminaire is made from a aluminum profile curved to desire shape. Suitable for suspended or surface mounted installations. Extruded aluminum body comes with white, black or grey finish. Available with custom color options or unique shape configurations. LED Strips are rated for 60,000hrs. L80 with +90 CRI. Has a proven record in office, commercial and retail installations. Custom modifications are available. ED luminaires are certified to CSA and UL Standards.
Resources
Materials
- Aluminum
- Metal
Mounting
- Surface
- Suspended
- Wall
Shape
- Curve
- Linear
- Oval
- Square
- Triangular
Color / Finish
- Black
- Custom
- Grey
- White
CCT
- 3000K
- 3500K
- 4000K
CRI
- 85 CRI
- 90 CRI
Circuit
- Dual Circuit
- Single Circuit
Dimming Protocol
- 0-10 V
- 1-10 V
- Bluetooth Wireless
- DALI
- ELV
- Triac
Dimming Range
- 1%
- 10%
- < 1%
Distribution
- Direct
- Direct/Indirect
- Indirect
Lamp Life
- 60000 hrs
Lamp Source
- LED
Listings
- CSA
- ETL
- UL
Lumens/Linear Ft
- 515 Lm/ft
- 525 Lm/ft
- 535 Lm/ft
- 720 Lm/ft
- 735 Lm/ft
- 750 Lm/ft
- 1030 Lm/ft
- 1050 Lm/ft
- 1080 Lm/ft
Ratings & Compliance
- Damp
- Declare
- Made in Canada
Up/Down Ratio
- 30/70 (Up/Down)
Voltage
- 120 V
- 277 V
- 347 V
Warranty
- 5 yr
Watts/Linear Foot
- 5 w/lf
- 5 w/lf
- 7 w/lf
- 10 w/lf
- 10 w/lf
