ED CROSS+

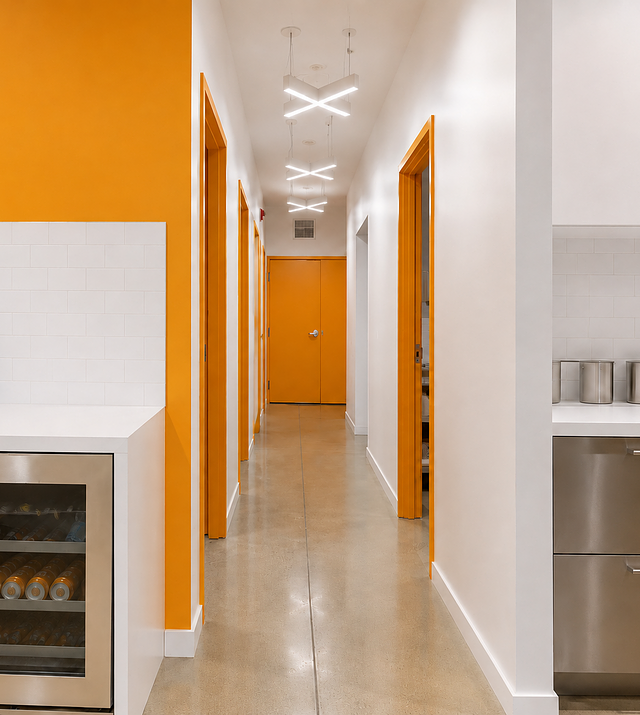

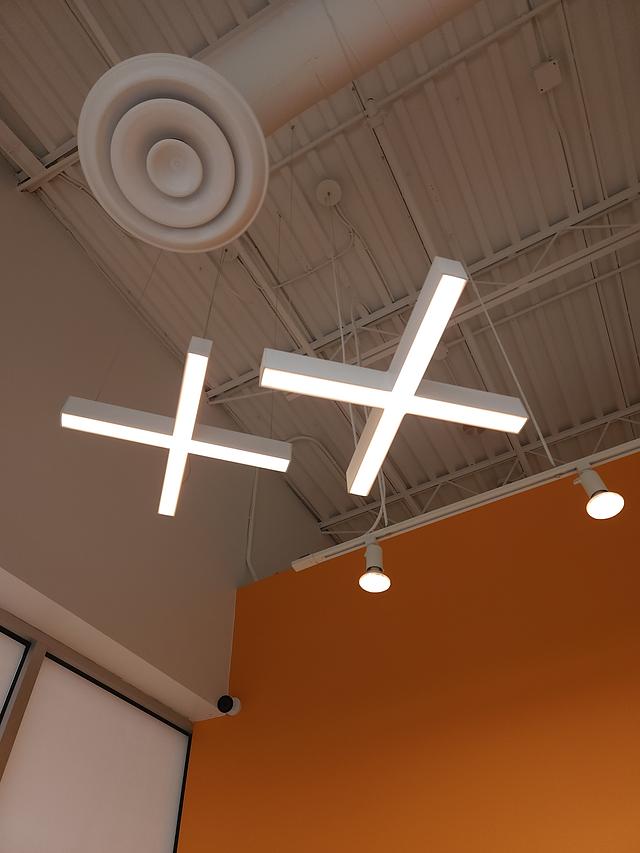

Architectural Cross Luminaire

  •     Architectural luminaire with direct distribution.
  •     Light source: LED board or LED strip.
  •     Even illumination is provided by a variety of high-efficiency optic lenses.
  •     Suitable for surface, suspended and recessed installations.
  •     Extruded aluminum body comes with a standard black or white finish.
  •     Also available with custom color options.
  •     LED strips are rated for 60,000 hrs. L80 with +90 CRI.
  •     Has a proven record in office, commercial and retail installations.
  •     Custom modifications are available.
  •     ED luminaires are certified to CSA and UL standards.
Specification Sheet

Resources

Materials

  • Aluminum

Mounting

  • Recessed
  • Surface
  • Suspended
  • Wall

Color / Finish

  • Black
  • Custom
  • White

Lumens

  • 2610 Lm
  • 2650 Lm
  • 2690 Lm
  • 5150 Lm
  • 5250 Lm
  • 5380 Lm
  • 7720 Lm
  • 7875 Lm
  • 8030 Lm

Watts

  • 25 w
  • 50 w
  • 75 w

CCT

  • 3000K
  • 3500K
  • 4000K

CRI

  • 85 CRI
  • 90 CRI

Circuit

  • Dual Circuit
  • Single Circuit

Controls Options

  • Daylight Sensor
  • Occupancy Sensor

Dimensions

  • H: 2.75 In. L: 23.25 In. W: 23.25 In.
  • L: 34.25 In. W: 34.25 In.
  • L: 45.50 In. W: 45.50 In.

Dimming Protocol

  • 0-10 V
  • 1-10 V
  • Bluetooth Wireless
  • DALI
  • ELV (Trailing Edge)
  • Triac (Leading Edge)

Dimming Range

  • 1%
  • 10%
  • < 1%

Distribution

  • Direct
  • Direct/Indirect
  • Indirect
  • Wall Wash

Dynamic LED Color

  • BIOS Dynamic
  • Tunable White

Efficacy

  • 103 lm/w
  • 105 lm/w
  • 108 lm/w

Lamp Life

  • 60000 hrs

Lamp Source

  • LED

Listings

  • CSA
  • ETL
  • UL

Ratings & Compliance

  • Damp
  • Declare
  • Made in Canada

Static LED Color

  • BIOS Static

Up/Down Ratio

  • 30/70 (Up/Down)

Voltage

  • 120 V
  • 277 V
  • 347 V

Warranty

  • 5 yr
