ED SQUARE + DOED SQUARE + DO
Architectural Square Luminaire
- Architectural luminaire with direct distribution.
- Light source: 11” LED modular board.

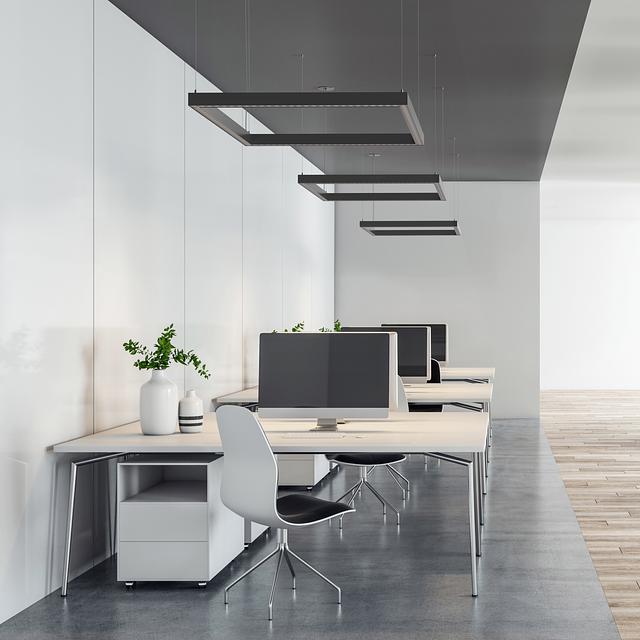

- Dark Optic provides superior lighting distribution with precise
- low glare illumination.
- Offered with Flood 50°/10UGR or Wide Flood 80°/15UGR internal optic.

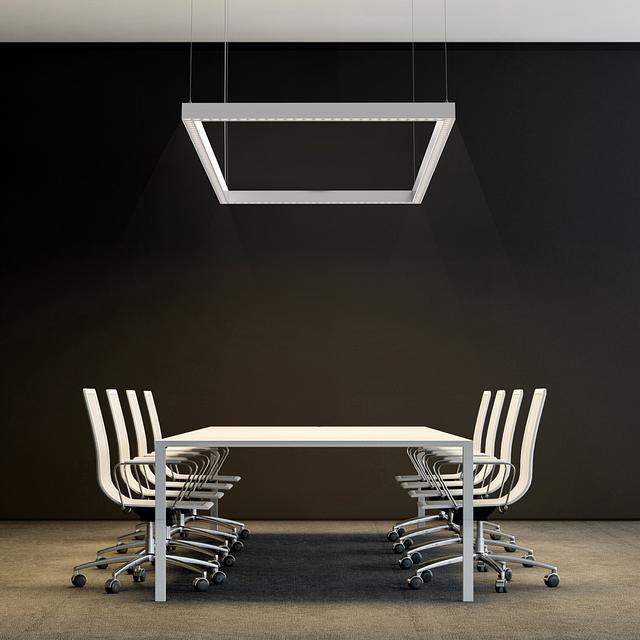

- Suitable for surface, suspended and recessed installations.
- Extruded aluminum body comes with a black or white finish.
- Also available with custom color options.
- LEDs are rated for 60,000 hrs. L80 with +90 CRI.
- Has a proven record in office, commercial and retail installations.
- Custom modifications are available.
- ED luminaires are certified to CSA and UL standards.
Resources
Materials
- Aluminum
Shape
- Square
Color / Finish
- Black
- Custom
- White
Lumens
- 3570 Lm
- 5950 Lm
- 9225 Lm
Watts
- 25 w
- 50 w
- 75 w
CCT
- 3000K
- 3500K
- 4000K
CRI
- 90 CRI
Circuit
- Dual Circuit
- Single Circuit
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
- DALI
- DMX
- ELV (Trailing Edge)
- Triac (Leading Edge)
Dimming Range
- 1%
- 10%
Lamp Life
- 60000 hrs
Lamp Source
- LED
Listings
- cULus
Ratings & Compliance
- DLC
- Declare
- Made in Canada
Voltage
- 120 V
- 277 V
- 347 V
Warranty
- 5 yr
