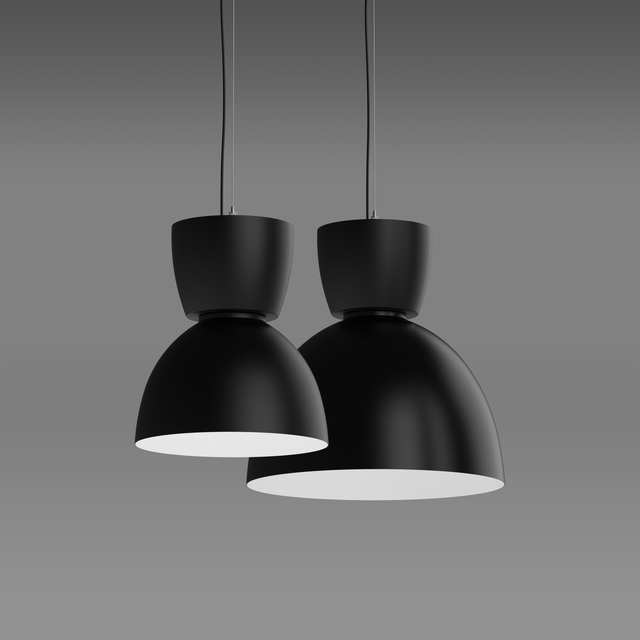

ED ZEN+

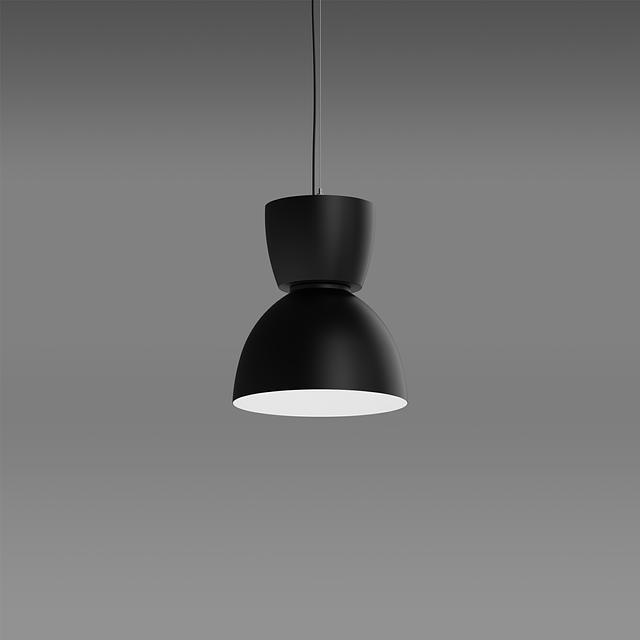

1-ED Zen+SM.jpg

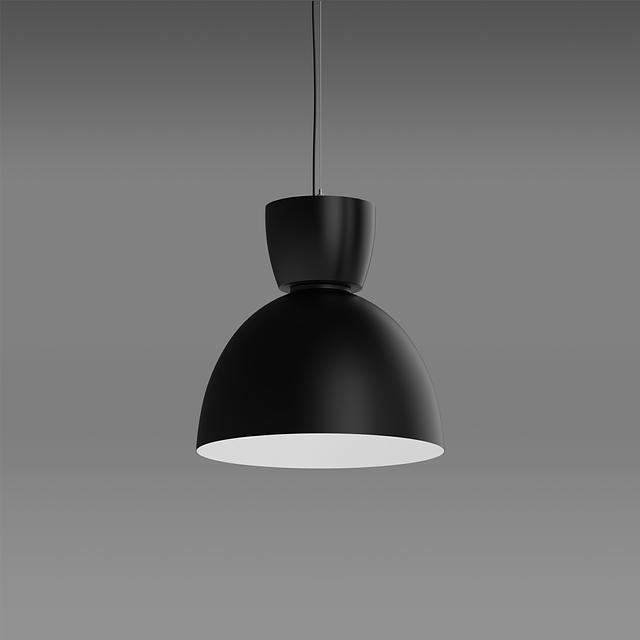

ED Zen+LG.jpg

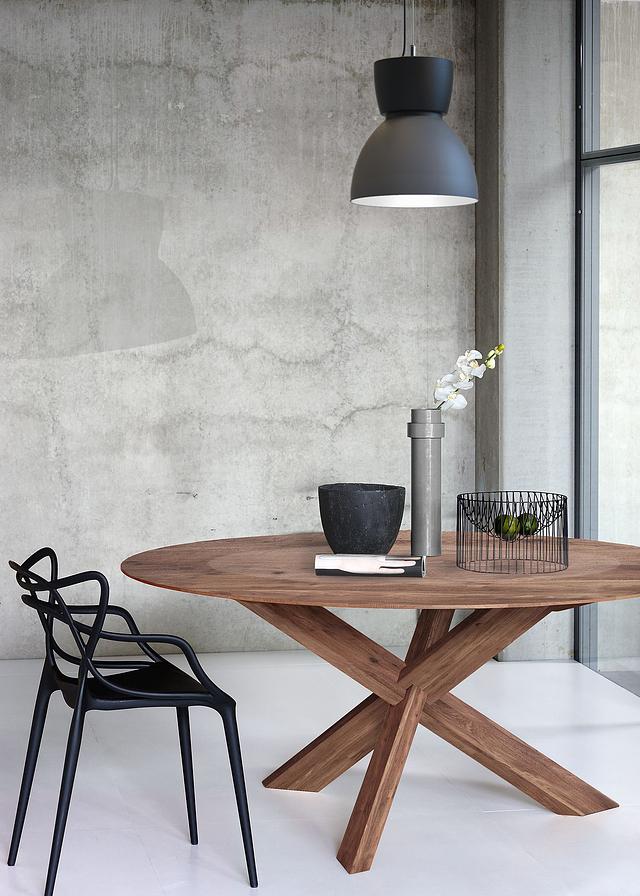

ED ZEN+ GREY.jpg

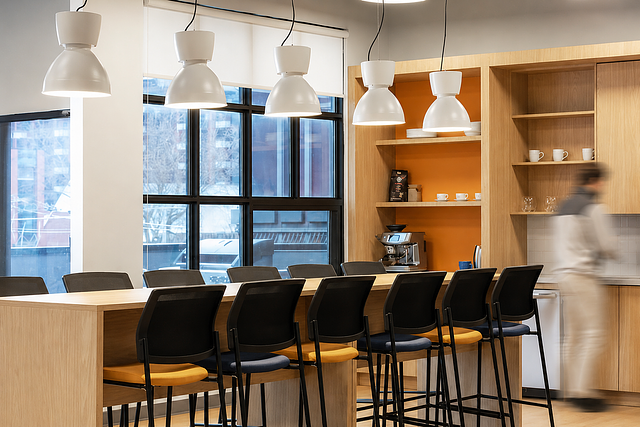

ZenStudioForma.pngED ZEN+
Architectural Unique Luminaire
- Architectural luminaire with direct lighting distribution.
- Light source: LED light engine with integrated driver.
- Available with an aluminum reflector with a white interior finish.
- Suitable for suspended installation.
- Available with wireless control through the ERP Tunable White app (iOS).
- Available in standard black or white finishes, with custom color options.
- LED light is rated for 60,000 hrs. L80 with +90 CRI.
- Has a proven record in office and commercial installations.
- Custom modifications are available.
- ED luminaires are certified to CSA and UL standards.
Resources
Materials
- Aluminum
- Polycarbonate
Mounting
- Suspended
Shape
- Dome
Color / Finish
- Black
- White
Lumens
- 1950
- 2000
- 2050
- 3900
- 4000
- 4100
Watts
- 17
- 34
CCT
- 3000K
- 3500K
- 4000K
CRI
- 85
- 90
Circuit
- Single
Dimming Protocol
- 0-10 V
- DALI
Dimming Range
- 1%
- 10%
- Non-Dimmable
Lamp Life
- 60000
Lamp Source
- LED
Listings
- cULus
Ratings & Compliance
- Made in Canada
Voltage
- 120 V
- 277 V
- 347 V
Warranty
- 5 yr
