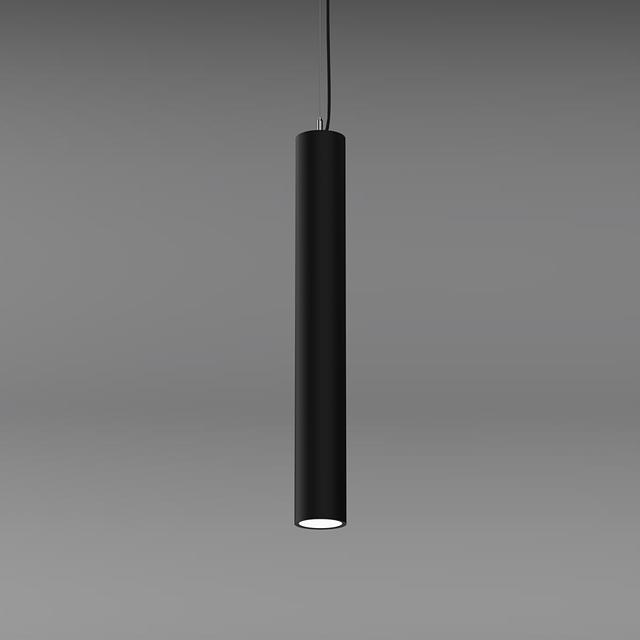

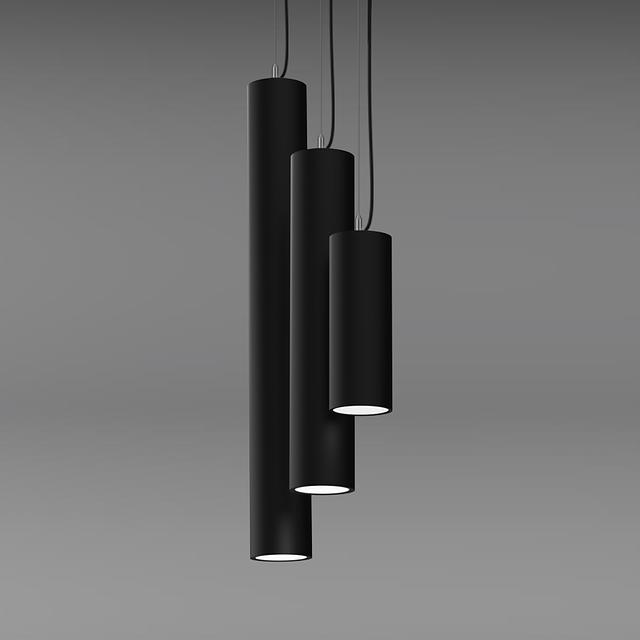

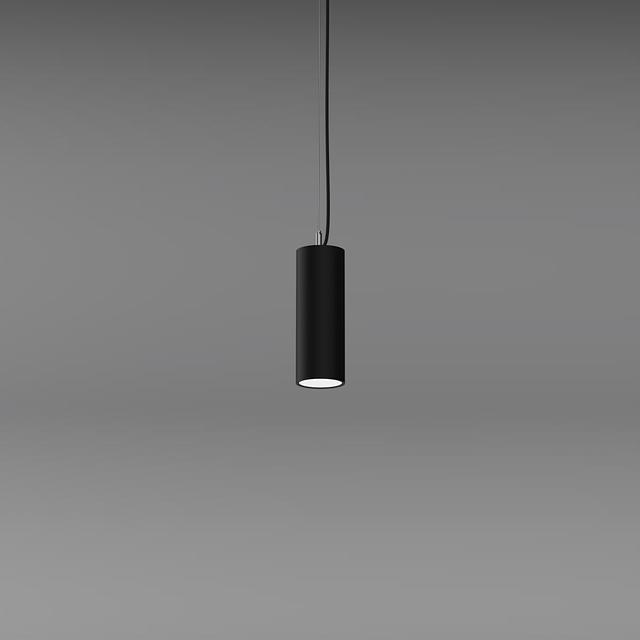

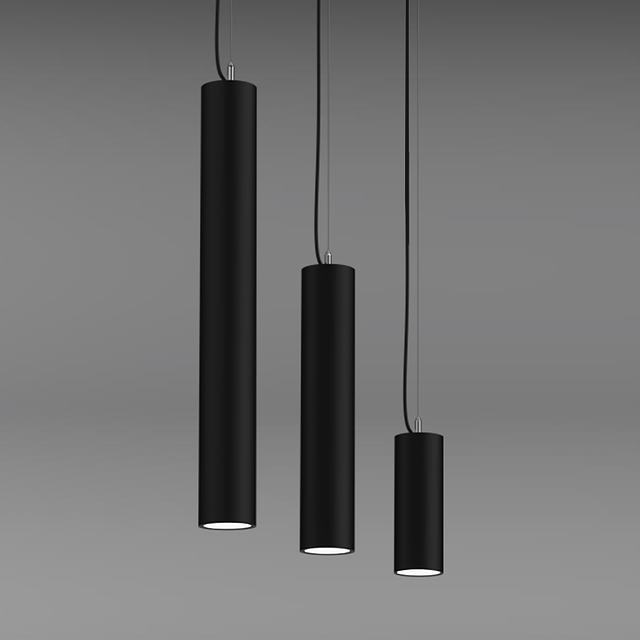

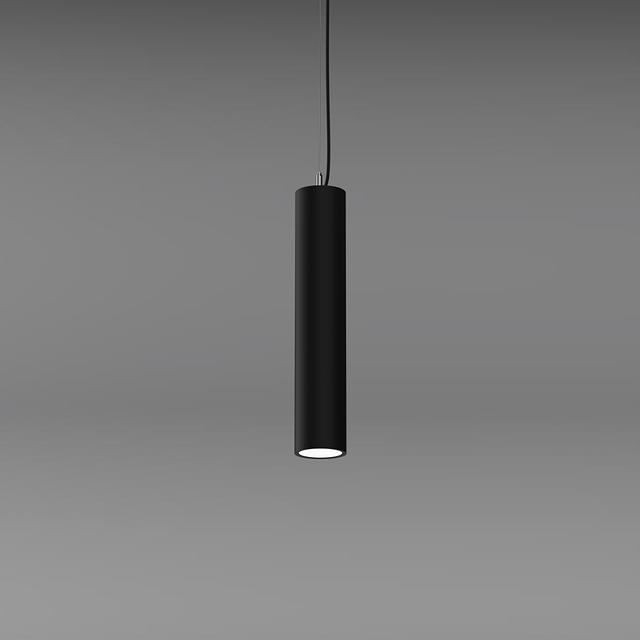

ED PIPE+

Architectural Pendant Luminaire

  • Architectural luminaire with direct lighting distribution.
  • Light source: COB LED.
  • High efficiency integral reflector combined with opal lens insert provide excellent lighting distribution.
  • Available with Spot 25°, Flood 45° and Wide Flood 60° beam angle.
  • Aluminum body of the luminaire comes with built-in-driver.
  • Suitable for suspended installations.
  • LED Spot is rated for 60,000hrs.
  • L70 with +90 CRI.
  • Has a proven record in office, commercial and retail installations.
  • Custom modifications are available.
  • ED luminaires are certified to CSA and UL Standards.
Specification Sheet

Resources

Specsheets


BIM & CAD Files


Materials

  • Aluminum

Shape

  • Cylinder

Color / Finish

  • Black
  • Grey
  • White

Lumens

  • 900 Lm
  • 1900 Lm

Watts

  • 10 w
  • 15 w
  • 20 w

CCT

  • 3000K
  • 3500K
  • 4000K

CRI

  • 90 CRI

Diameter

  • 4 In.

Dimming Protocol

  • 0-10 V
  • Bluetooth Wireless
  • ELV
  • Triac

Dimming Range

  • 1%
  • 10%

Listings

  • cULus

Ratings & Compliance

  • Made in Canada

Warranty

  • 5 yr
