Sonic TUBE+ (CS)
SONIC Tube+CS-25-Red.jpg
SONIC Tube+CS-25.jpgSonic TUBE+ (CS)

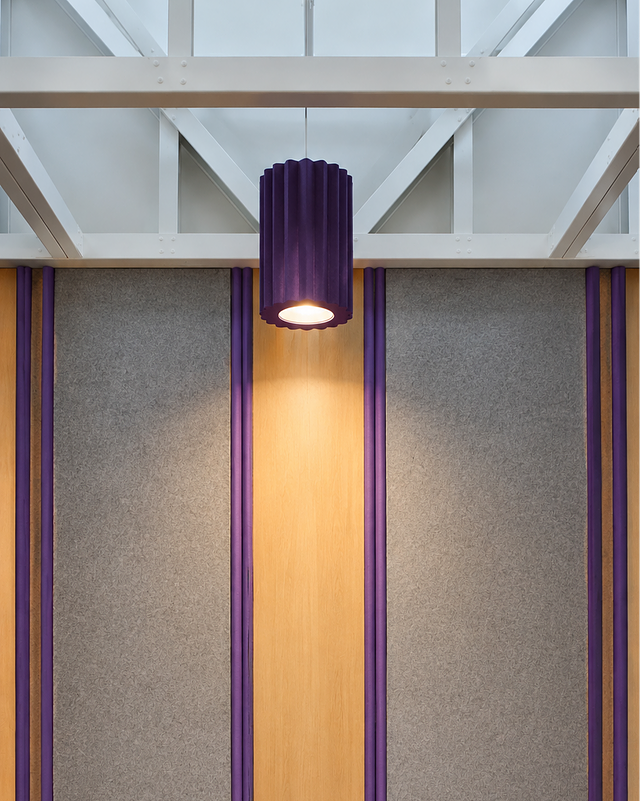

Acoustic Cylinder Luminaire
- Architectural sound absorbing Eco Felt Acoustic panel.
- Made from recyclable plastic material available in different thicknesses.
- Class1 Fire rated with 0.7 Noise Reduction Coefficient/1” Acoustic.
- Light source: COB LED.
- High efficiency integral reflector combined with opal lens insert provide excellent lighting distribution.
- Circular internal louver is available in a wide range of finishes.
- Aluminum body of the luminaire comes with built-in-driver. LED Spot is rated for 60,000hrs.
- L70 with +90 CRI.
- Has a proven record in office, commercial and retail installations.
- Custom modifications are available.
- ED luminaires are certified to CSA and UL Standards.
Resources
Materials
- Aluminum
- Felt
- Polycarbonate
Mounting
- Suspended
Shape
- Cylinder
Color / Finish
- Black
- Custom
- Grey
- White
Lumens
- 1400 Lm
- 1430 Lm
- 1460 Lm
- 1910 Lm
- 1950 Lm
- 1990 Lm
- 2350 Lm
- 2400 Lm
- 2450 Lm
Watts
- 15 w
- 20 w
- 25 w
CCT
- 3000K
- 3500K
- 4000K
CRI
- 85 CRI
Diameter
- 8 In.
Dimming Protocol
- 0-10 V
- DALI
- ELV
- Triac
Dimming Range
- 1%
- 10%
- < 1%
Distribution
- Wide
Dynamic LED Color
- BIOS Dynamic
Listings
- cULus
Ratings & Compliance
- Declare
- Fire Rated
- Made in Canada
Static LED Color
- BIOS Static
Warranty
- 5 yr
