ED LINE 0+ED LINE 0+
Architectural Dark Optic Recessed Luminaire
- Architectural luminaire with direct lighting distribution.
- Light source: 11” Curved LED Board.
- Dark Optic provides superior lighting distribution with precise low glare illumination.
- 7 cell LEDiL curved reflector is available in several standard finishes.
- Offered with regular 50°/16UGR and flood 80°/19UGR internal optic.
- Low profile steel body housing contains a built-in driver.
- Suitable for non-insulated recessed installations into T-Bar or drywall.

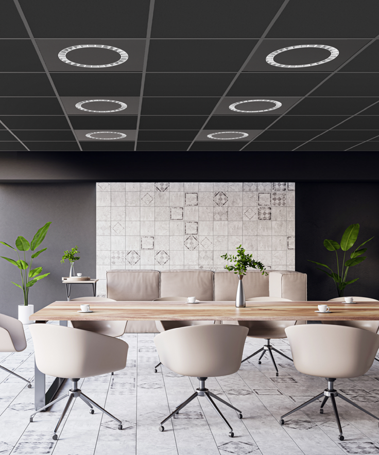

- Has a proven record in office, commercial and retail installations.
- LED’s are rated for 60,000hrs. L80 with +90 CRI.
- Custom modifications are available.
- ED luminaires are certified to CSA and UL Standards.
Resources
Materials
- Metal
- Plastic
Mounting
- Ceiling
- Recessed
Shape
- Square
Color / Finish
- Black
- White
Watts
- 20
- 30
Aperture
- 24
Beam Angle
- 50
- 80
CCT
- Field Selectable CCT
- 3000K
- 3500K
- 4000K
CRI
- 90
Circuit
- Single
Controls Options
- Wireless Control
- Zone Control
Dimming Protocol
- 0-10 V
- Casambi Wireless
- DALI
- Lutron Athena AWN
- Triac (Leading Edge)
Dimming Range
- 0-100%
- 1%
- < 1%
- Non-Dimmable
Distribution
- Direct
- Glare Control
Lamp Life
- 60000
Lamp Source
- LED
Listings
- CSA
- ETL
- UL
- cETLus
- cULus
Emergency Options
- Integral EM Battery
Ratings & Compliance
- Declare
- Dry
- Made in Canada
Special Programs
- Design Select
- Rapid Response
Voltage
- 120-277 V
- 347 V
Warranty
- 5 yr
Integrated Brands
- Casambi
- Lutron Athena
