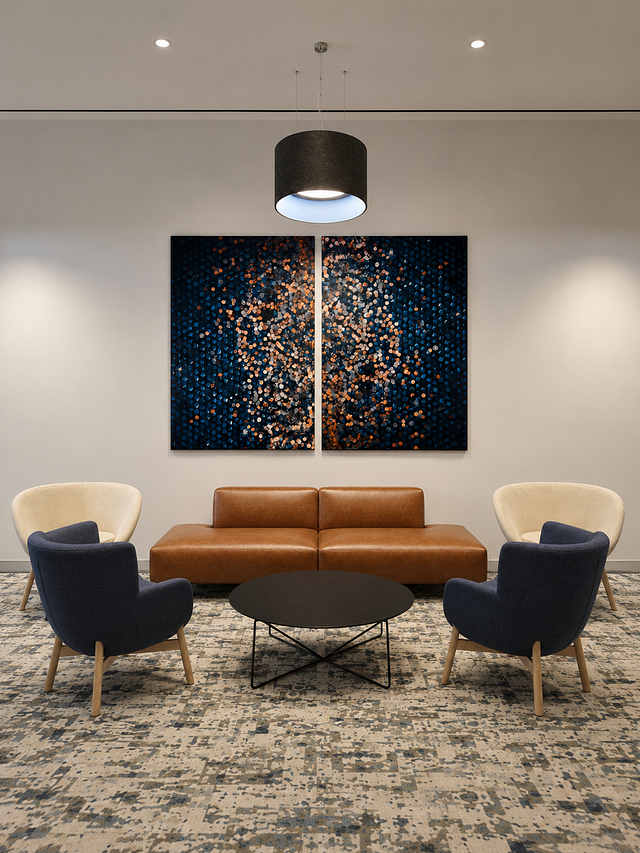

Sonic DRUM+ (BS)
SONIC DRUM+BS#1.jpg
SONIC DRUM+BS#2.jpgSonic DRUM+ (BS)
Acoustic Bell Shade Luminaire
- Architectural sound absorbing Eco Felt Acoustic panel.
- Made from recyclable plastic material available in different thicknesses.
- Class1 Fire rated with 0.7 Noise Reduction Coefficient / 1” Acoustic.
- Light source: LED Board (5.5”/11”/22”/24”).
- Diffused illumination is provided by frosted opal lens.
- Extruded aluminum body comes with built-in-driver and available in white, black or grey finish.
- Also available with custom colour options.
- LED Strips are rated for 60,000hrs. L80 with +90 CRI.
- Has a proven record in office, commercial and retail installations.
- Custom modifications are available.
- ED luminaires are certified to CSA and UL Standards.
Resources
Materials
- Aluminum
- Felt
- Polycarbonate
Mounting
- Pendant
- Suspended
Shape
- Cylinder
- Drum
Color / Finish
- Black
- Custom
- White
Lumens
- 2205
- 2250
- 2295
- 4410
- 4500
- 4590
Watts
- 25
- 50
CCT
- Field Selectable CCT
- 3000K
- 3500K
- 4000K
CRI
- 90
Circuit
- Single
Dimming Protocol
- 0-10 V
- Bluetooth Wireless
- DALI
- DMX
- Lutron Athena AWN
- Triac (Leading Edge)
Dimming Range
- 0-100%
- 1%
- < 1%
- Non-Dimmable
Distribution
- Diffuse
- Direct
Dynamic LED Color
- BIOS
- RGBW
- Tunable White
Lamp Life
- 60000
Lamp Source
- LED
Listings
- CSA
- ETL
- UL
- cETLus
- cULus
Ratings & Compliance
- Damp
- Declare
- Fire Rated
- Made in Canada
Special Programs
- Design Select
- Rapid Response
Static LED Color
- BIOS Static
Voltage
- 120-277 V
- 347 V
Warranty
- 5 yr
Integrated Brands
- Casambi
- Lutron Athena
